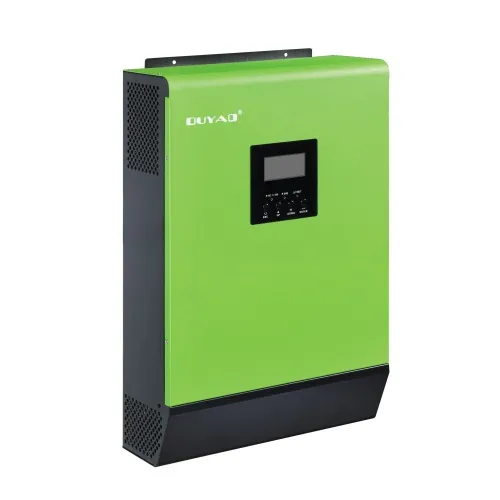

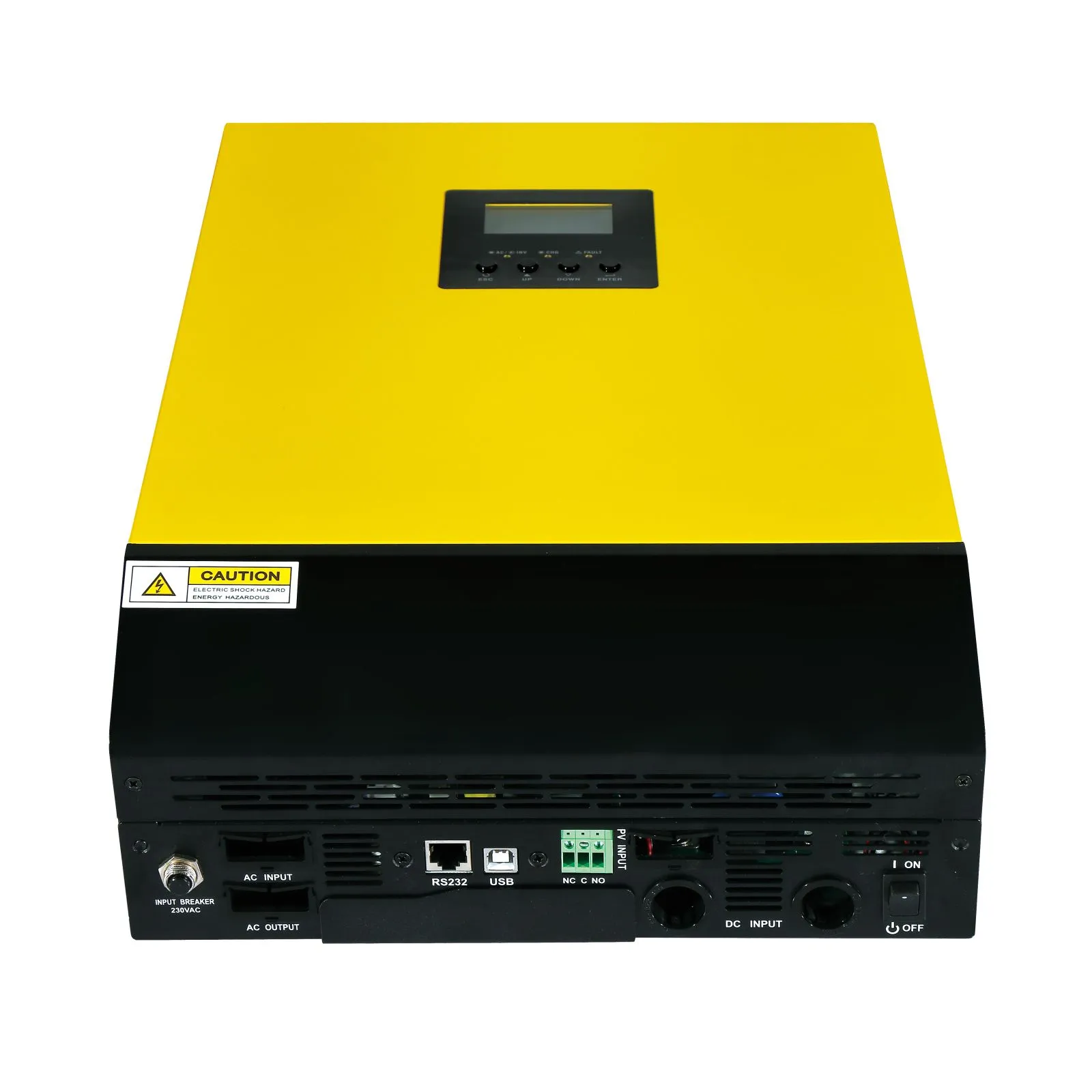

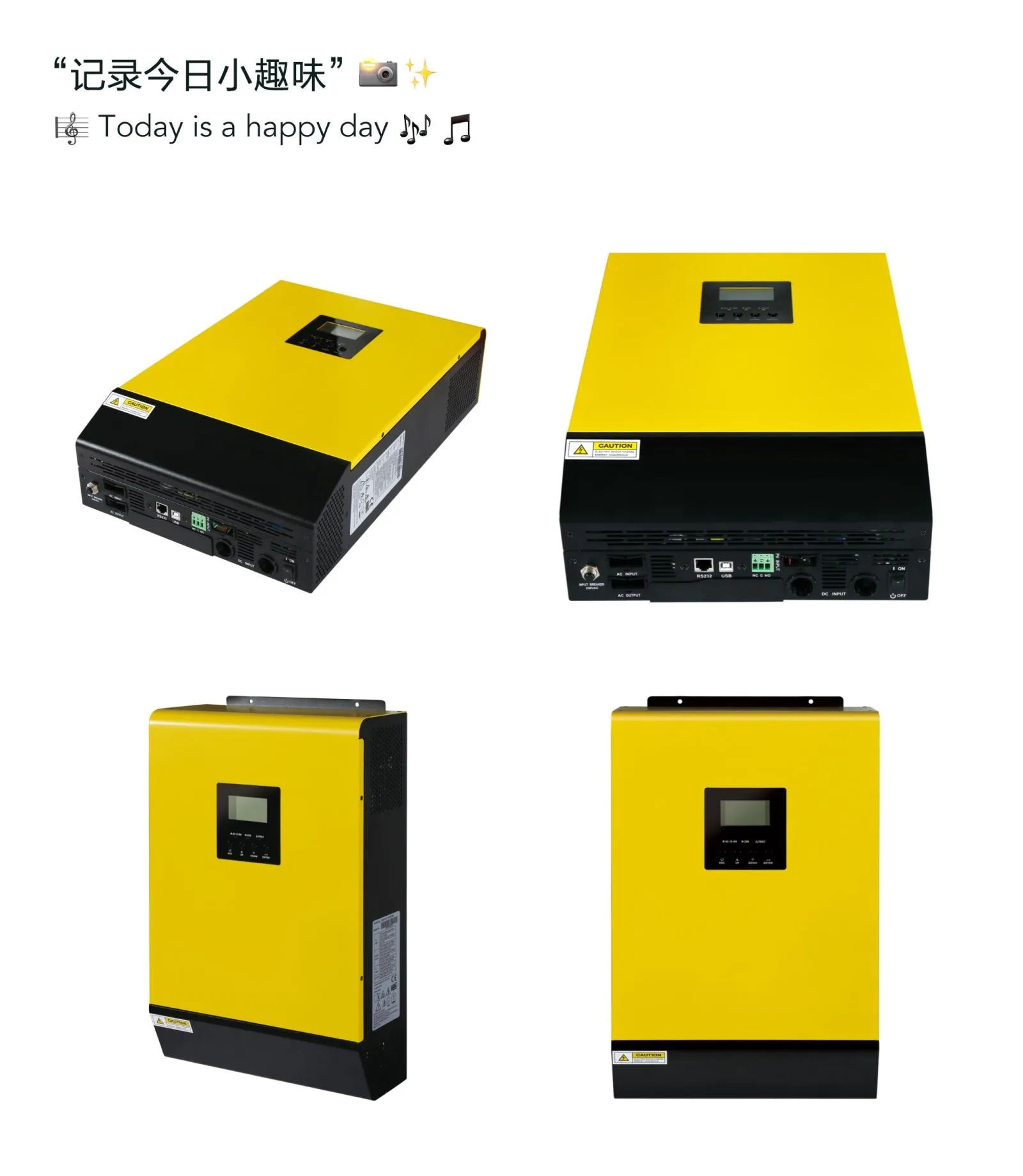

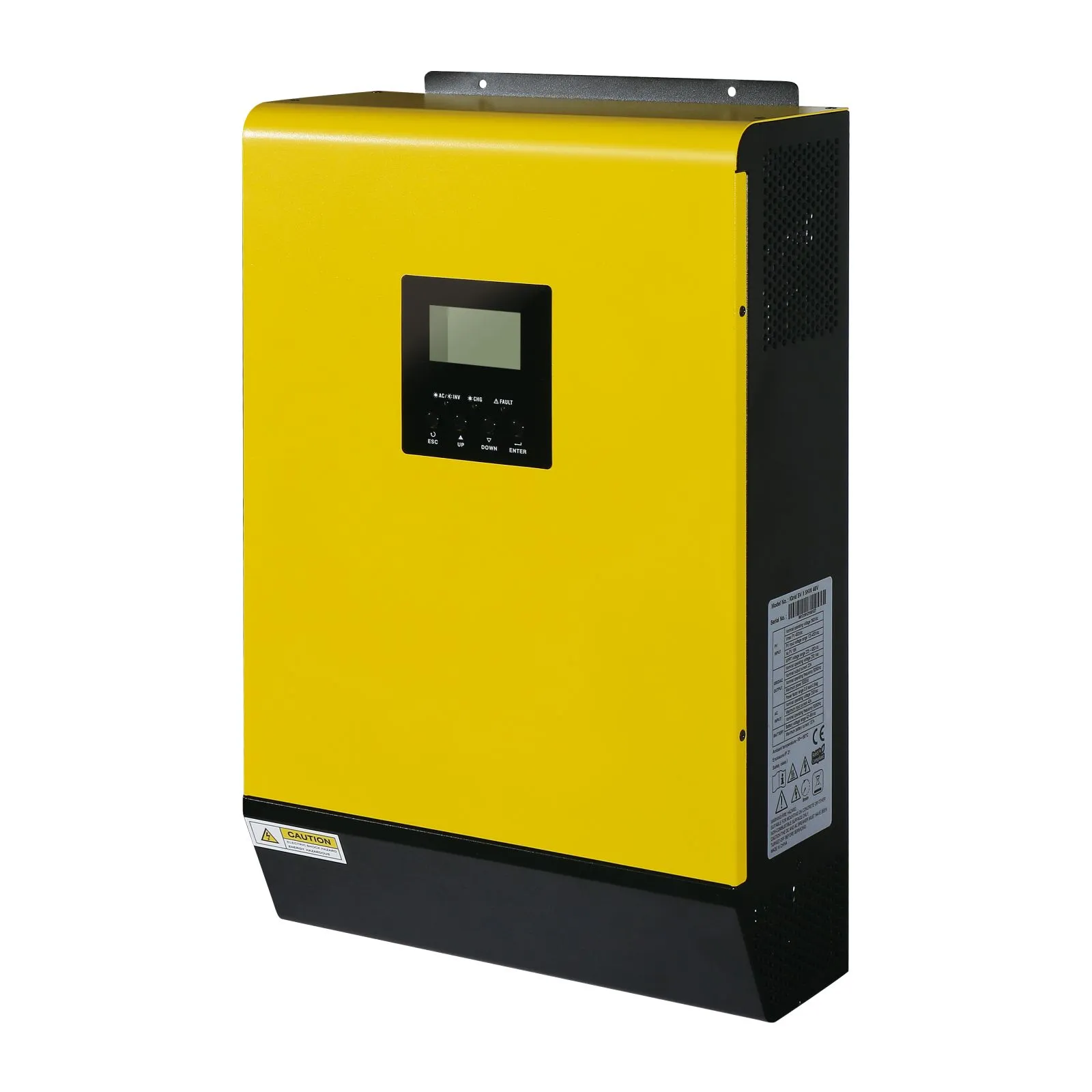

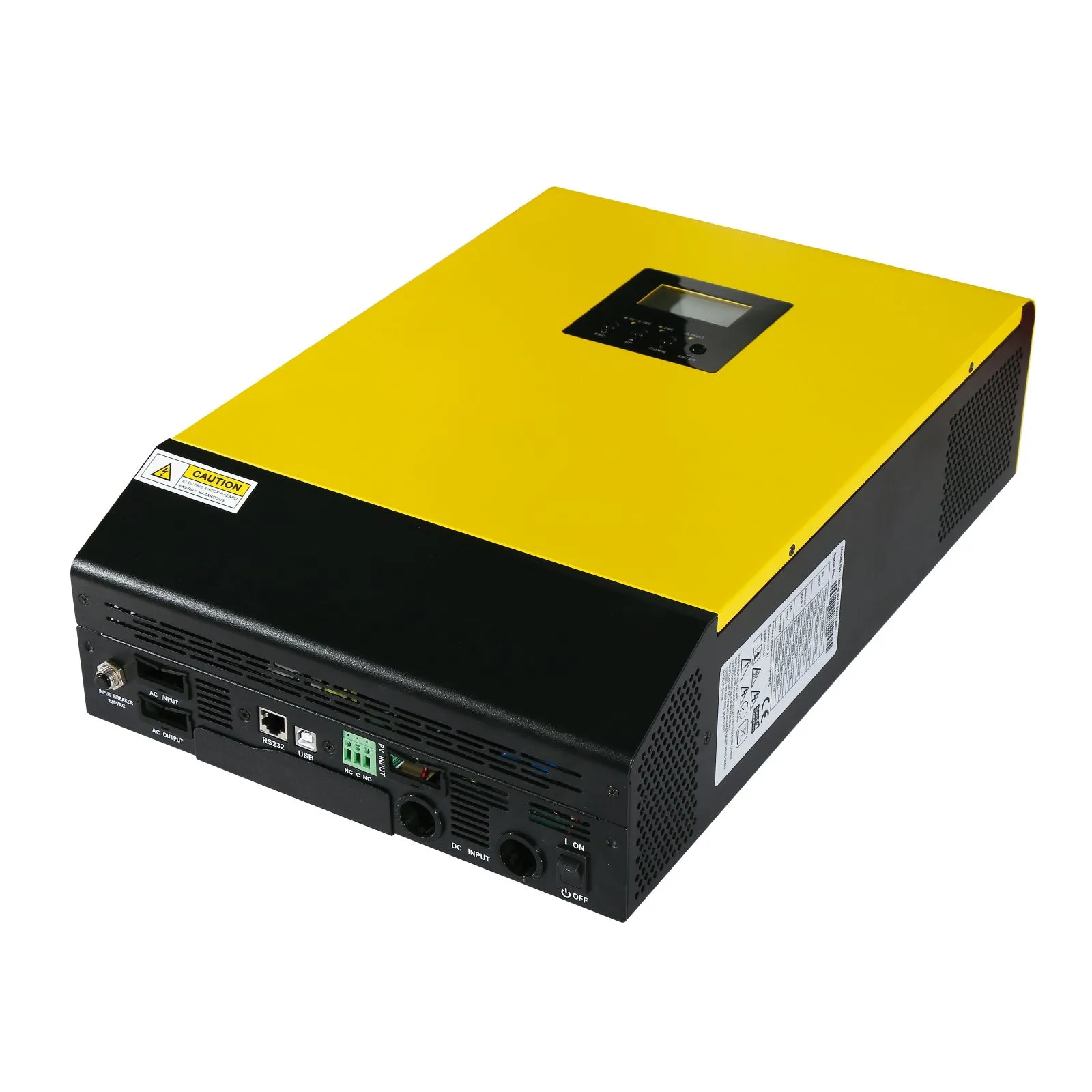

HYG1033
1. Pure sine wave output

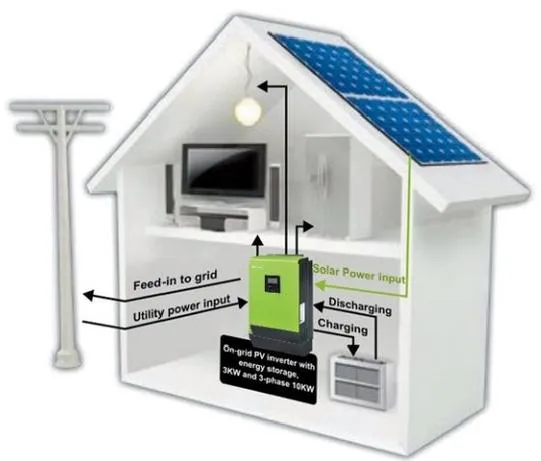

2. Self-consumption and deed in to the grid
3. Programmable supply priority for PV,Battery or Grid
4. User-adjustable battery charging current suits different types of batteries
5. Programmable multiple operation modes: Grid-tie,Off-grid and grid-tie with backup
6. Built-in timer for various mode of on/off operation
7. Multiple communication for USB,RS232,Modbus and SNMP
8. Monitoring software for rel-time status display and control
9. Parallel operation up to 6 units for 10KW
PREVIOUS：HYG5032
NEXT：HY3522VMIII
Technical Specifications:
| Model | HYG5032 | HYG5532 | HYG1033 |
| PHASE | 1-phase in/1 phase out | 1-phase in/1 phase out | 3-phase in/3-phase out |
| Max. PV INPUT POWER | 5000W | 6500WV | 14850WV |
| Rated Output Power | 5000W | 5500W | 10000WV |
| Maximum Charging Power | 4800 W | 2880 WV | 9600 W |
| GRID TIE OPERATION | |||
| PV INPUT(DC) | |||
| Nominal DC Voltage/Max. DC Voltage | 720 VDC/900 VDC | 360 VDC/500 VDC | 720 VDC/900 VDC |
| Start-up Voltage/lnitial Feeding Voltage | 225 VDC/250 VDC | 446VDCJ150 VDC | 320 VDC/350 VDC |
| MPP Voltage Range | 250 VDC~850 VDC | 120 VDC~450 VDC | 400 VDC~800 VDC |
| Number of MPP Trackers/ | 2/2x10A | 2/2x13A | 2/2x18.6A |
| Mavimum input Currenl | |||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 208/220/230/240 VAC | 208/220/230/240 VAC | 230 VAC(P-N)/ |
| 400 VAC(P-P) | |||
| Output Voltage Range | 184-265 VAC* | 184-265 VAC* | 184-265 VAC* per phase |
| Mooinal Output Curren | 21A | 23.9A | 44.5A per phase |
| Power Factor | > 0.99 | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency (DC/AC) | 96% | ||
| European Efficiency@Vnominal | 95% | ||
| OFF GRID OPERATION | |||
| AC INPUT | |||
| AC start-up Voltagel | 120-140 VAC/180 VAC | 120-140 VAC/180 VAC | 120-140 VAC per phase/ |
| Auto Restart yoltage | 480 √AC per phase | ||
| Acceptable Input Voltage Range | 170-280 VAC | 170-280 VAC | 470-280YAC per phase |
| Max. AC Input Current | 21A | 40A | 40A |
| PV INPUT(DC) | |||
| May DC Voltage | 900 VDC | 500 VDC | 900 VDC |
| MPP Voltage Range | 250 VDC~850 VDC | 120 VDC~450 VDC | 400 VDC~800 VDC |
| Number of MPP Trackers/Max. Input Current | 2/2x10A | 2/2x13A | 2/2x18.6A |
| BATTERY Mode Output(AC) | |||
| Nominal Output Voltage | 202/208/220/230/240 VAC | 202/208/220/230/240 VAC | 230 VAC(P-N)/400 VAC(P-P) |
| Output Waveform | Pure Sine Wave | ||
| Efficiency (DC to AC) | 93% | 93% | 91% |
| HYBRID OPERATION | |||
| PV INPUT(DC) | |||
| Nominal DC Voltage/Max. DC Voltage | 720 VDC/900 VDC | 360 VDC/500 VDC | 720 VDC/900 VDC |
| Start-up Voltage/lnitial Feeding Voltage | 225 VDC/ 250 VDC | 116 VDC/150 VDC | 320 VDC/ 350 VDC |
| MPP Voltage Range | 250 VDC~850 VDC | 120 VDC~450 VDC | 400 VDC~800 VDC |
| Number of MPP Trackers/Max. Input Current | 2/2x10A | 2/2x13A | 2/2x18.6A |
| GRID OUTOUT(AC) | |||
| Nominal Output Voltage | 202/208/220/230/240 VAC | 202/208/220/230/240 VAC | 230 VAC(P-N)/ |
| 400 VAC(P-P) | |||
| Output Voltage Range | 184-264.5 VAC | 184-264.5 VAC* | 184-264.5 VAC* per phase |
| Nominal Output Current | 21A | 23.9A | 14.5A per phase |
| AC INPUT | |||
| AC Start-up Voltage/Auto Restart Voltage | 120-140 VAC/180 VAC | 120-140 VAC/180 VAC | 120-140 VAC per phase/ 180VAC per phase |
| Acceptable Input Voltage Range | 170-280 VAC | 170-280 VAC | 170-280 VAC per phase |
| Max. AC Input Current | 30A | 30A | 40A |
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 202/208/220/230/240 VAC | 202/208/220/230/240 VAC | 230 VAC(P-N)/ |
| 400 VAC(P-P) | |||
| Efficiency (DC to AC) | 93% | 93% | 91% |
| BATTERY& CHARGER | |||
| Battery DC Voltage | 48V | ||
| Max. Charging Current | Default 60A | Default 60A,10A-200A (Adjustable) | |
| GENERAL | |||
| PHYSICAL | |||
| Dimension,DxWxH(mm) | 204.2x460x 600 | 110*450*445 | 167.5×500x622 |
| Net weight (kgs) | 29 | 16 | 45 |
| INTERFACE | |||
| Communication Port | RS-232/USB and CAN Interface | ||
| ENVIRONMENT | |||
| Humidity | 0~90%RH | ||
| Operating Temperature | -10 to 55° C | 0 to 40°C | -10to 55°C |
| Altitude | 0-1000 m** | ||
