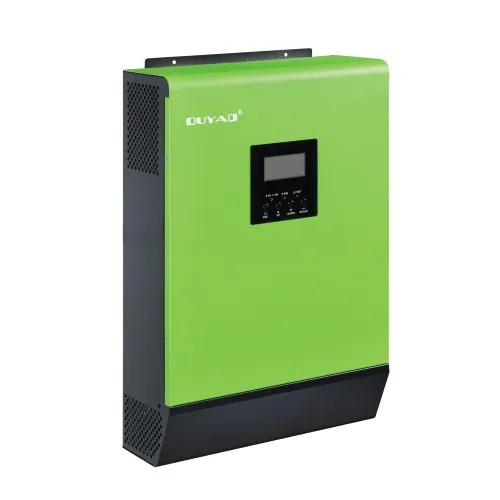

HYG5032
1.Pure sine wave output

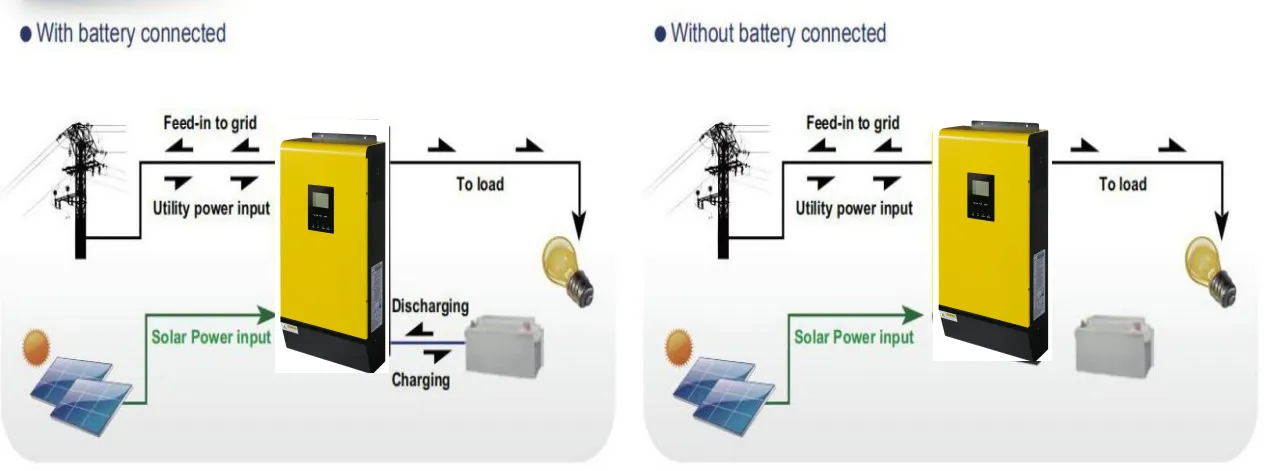

2.Self-consupmtion and Feed-in to the grid
3.Programmable supply priority for PV，Battery or Gird
4.User-adjustable charging current and voltage
5.Programmable mulitple operation modes：Grid-tie，off-gird and gird-tie with backup
6.Monitoring software for real-time status display and control 7.Parallel operation up to 9 units
8.Battery Independent system
PREVIOUS：Home Energy Storage
NEXT：HYG1033
HYG5032 On-Grid Inverter With Energy Storage Selection Guide
| Model | HYG 5032 |
| Max.PV Array Power | 5000W |
| Rated Output Power | 5000W |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| MPPT Range @Operating Voltage | 120 VDC~430 VDC |
| MPPT Tracker Nunmber | 1 |
| GRID-TIE OPERATION | |
| GIRD OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184-264.5VAC or 195.5-253 VAC(Selectable) |
| Nominal Output Current | 21.7A |
| Power Factor | ＞0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency（DC/AC） | 95% |
| OFF-GRID,HYBRID OPERATION | |
| GRID INPUT | |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
| Frequency Range | 50Hz/60Hz(Auto sensing) |
| Maximum AC Input Current | 40A |
| BATTERY MODE OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240/VAC |
| Output Waveform | Pure sine wave |
| Efficiency（DCtoAC） | 93% |
| BATTERY&CHARGER | |
| Nominal DC Voltage | 48VDC |
| Maximum Solar Charge Currnet | 80A |
| Maximum AC Charge Currnet | 80A |
| Maximum Charge Currnet | 80A |
| GENERAL | |
| PHYSICAL | |
| Dimension,D*W*H(mm) | 120*295*468 |
| Net Weight(kgs) | 12 |
| INTERFACE | |
| Paralle Function | Yes,9 Units |

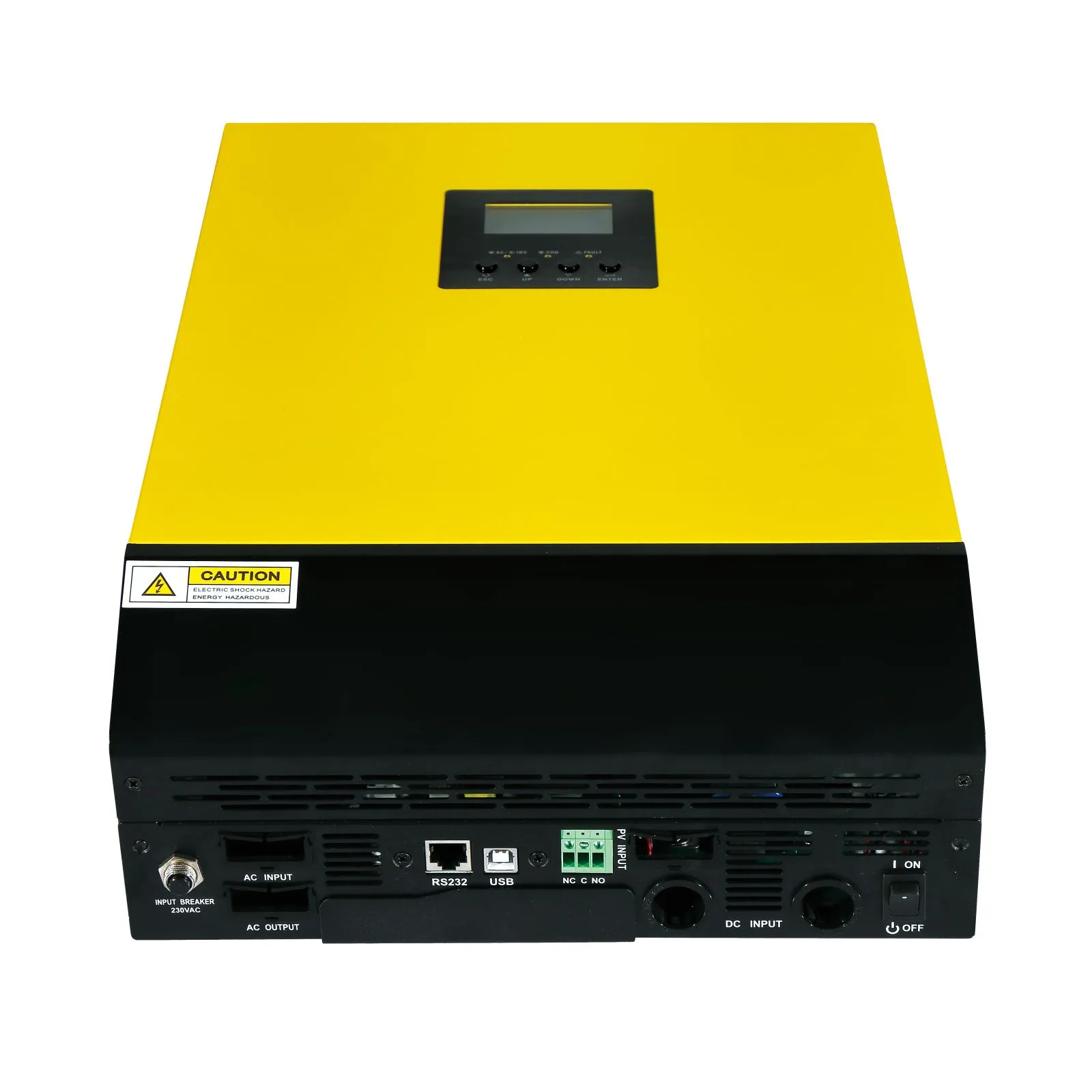

| Communication Ports | USB,RS-232 and dry contact |
| ENVIRONMERNT | |
| Humidity | 0~90%RH(Non-condensing) |
| Operating Temperature | -10℃ to 50℃ |
